Material: Baffle: CNC 6061 aluminum alloy, black anodized Bracket: Sheet metal 304 stainless steel, black powder coated

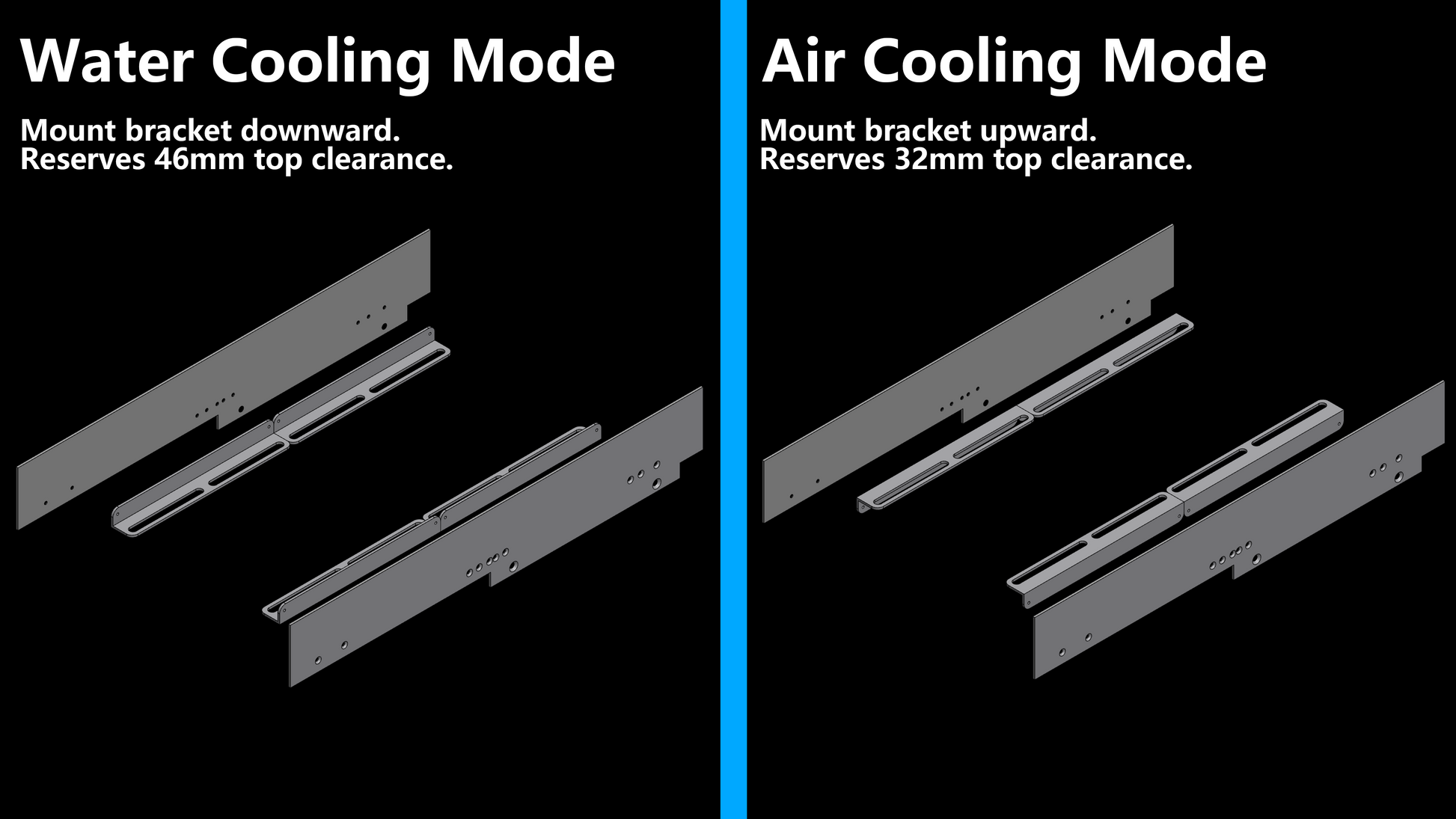

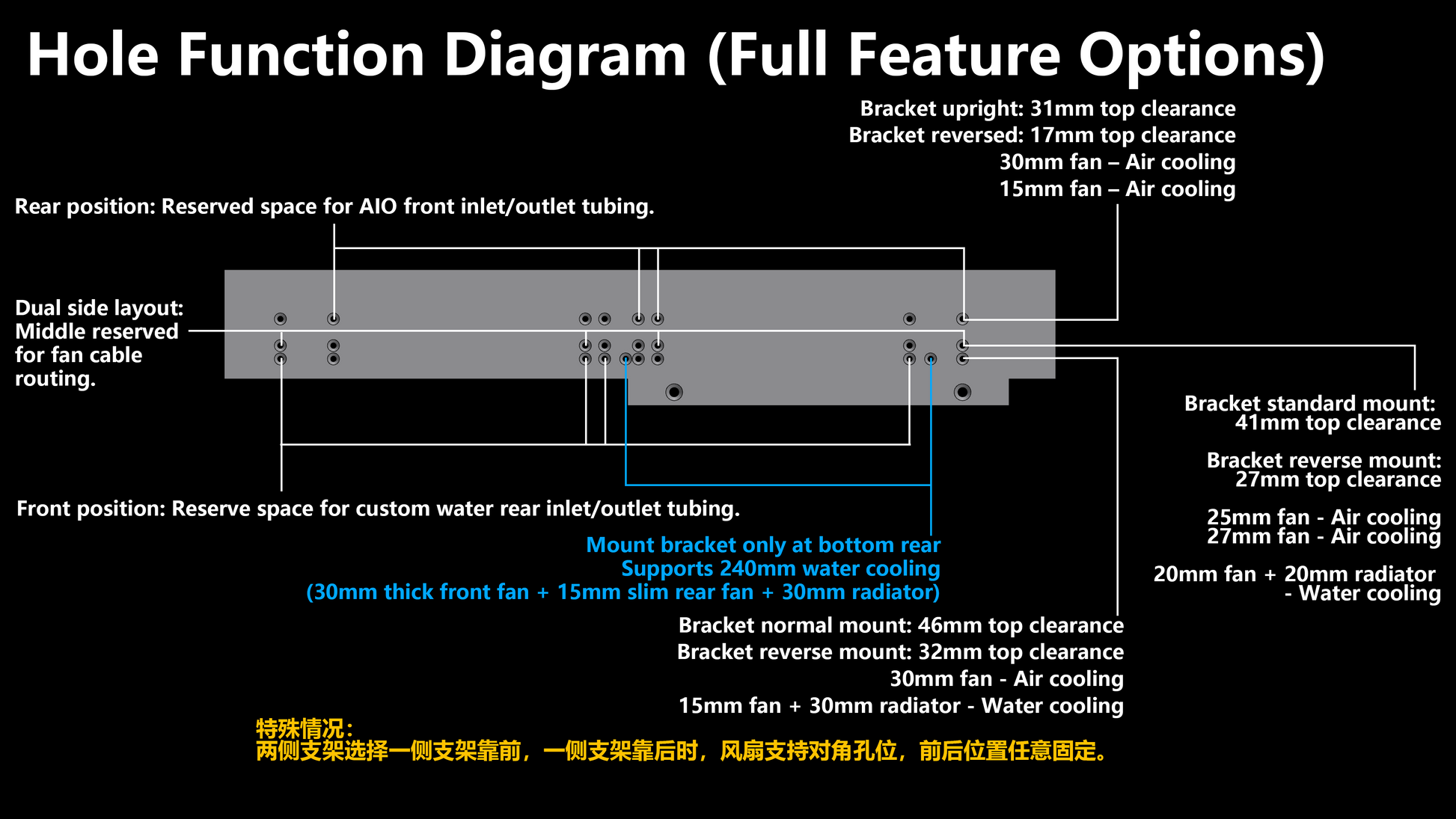

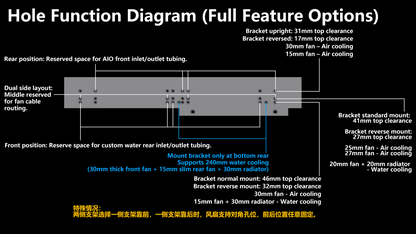

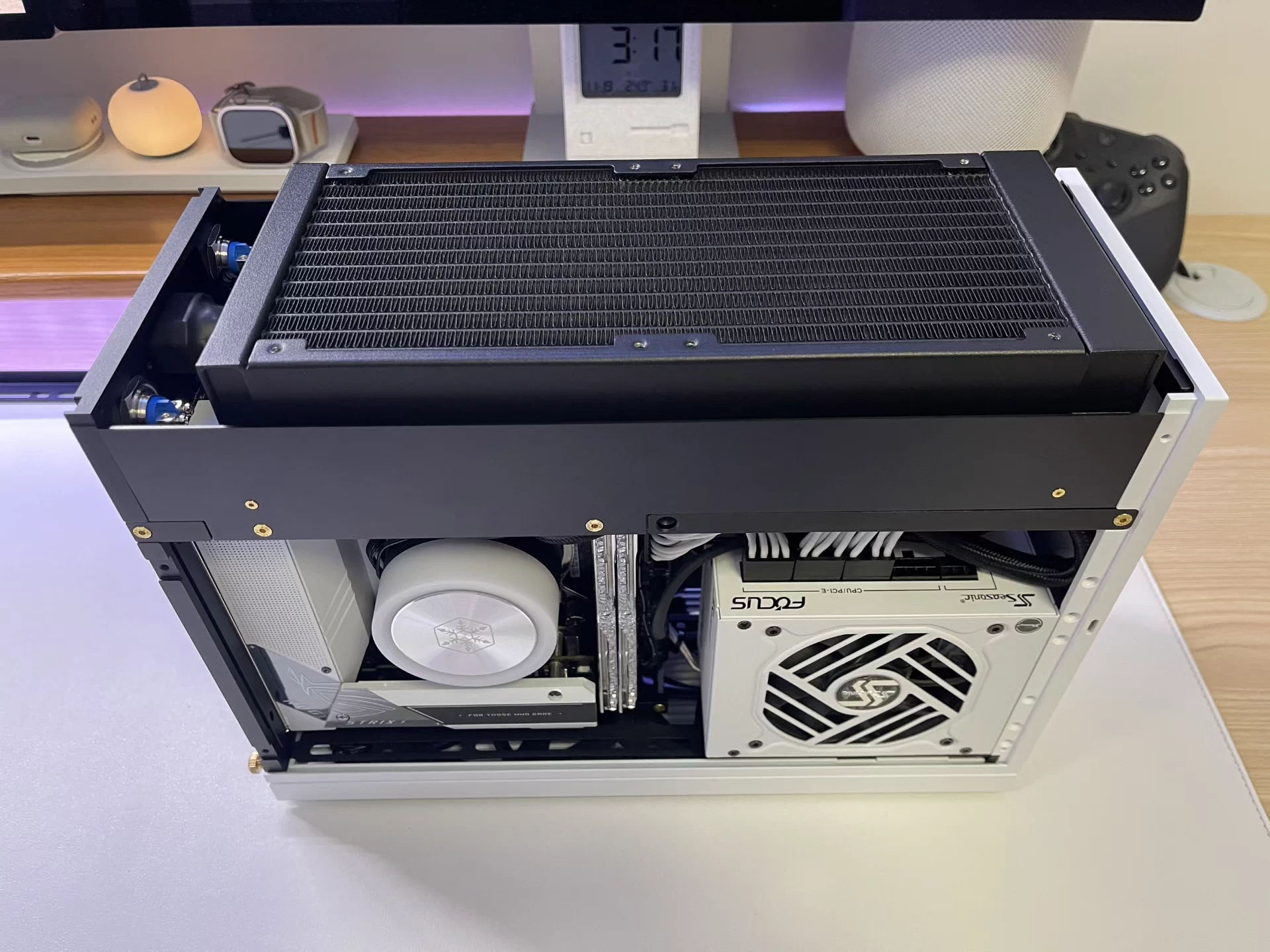

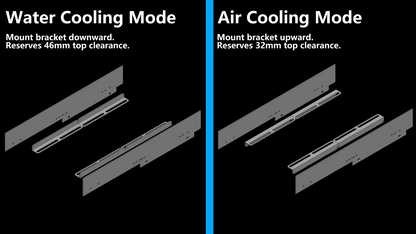

Universal compatibility with air cooling and AIO liquid cooling. The short bracket version features three adjustable front/rear split modes: front, rear and middle. Compatible with front-routing AIO cooling and rear-routing custom water cooling.
The grille bracket version is mainly used for cable hiding, ideal for scenarios where power cables are placed too close to fans with SFX-L power supplies. This version does not support the water cooling configuration of 15mm front fan + 30mm rear fan; all other functions are identical to other versions.

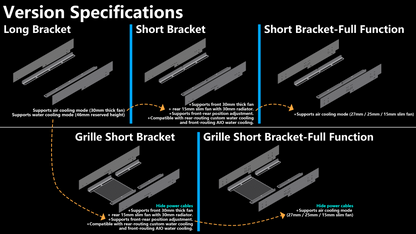

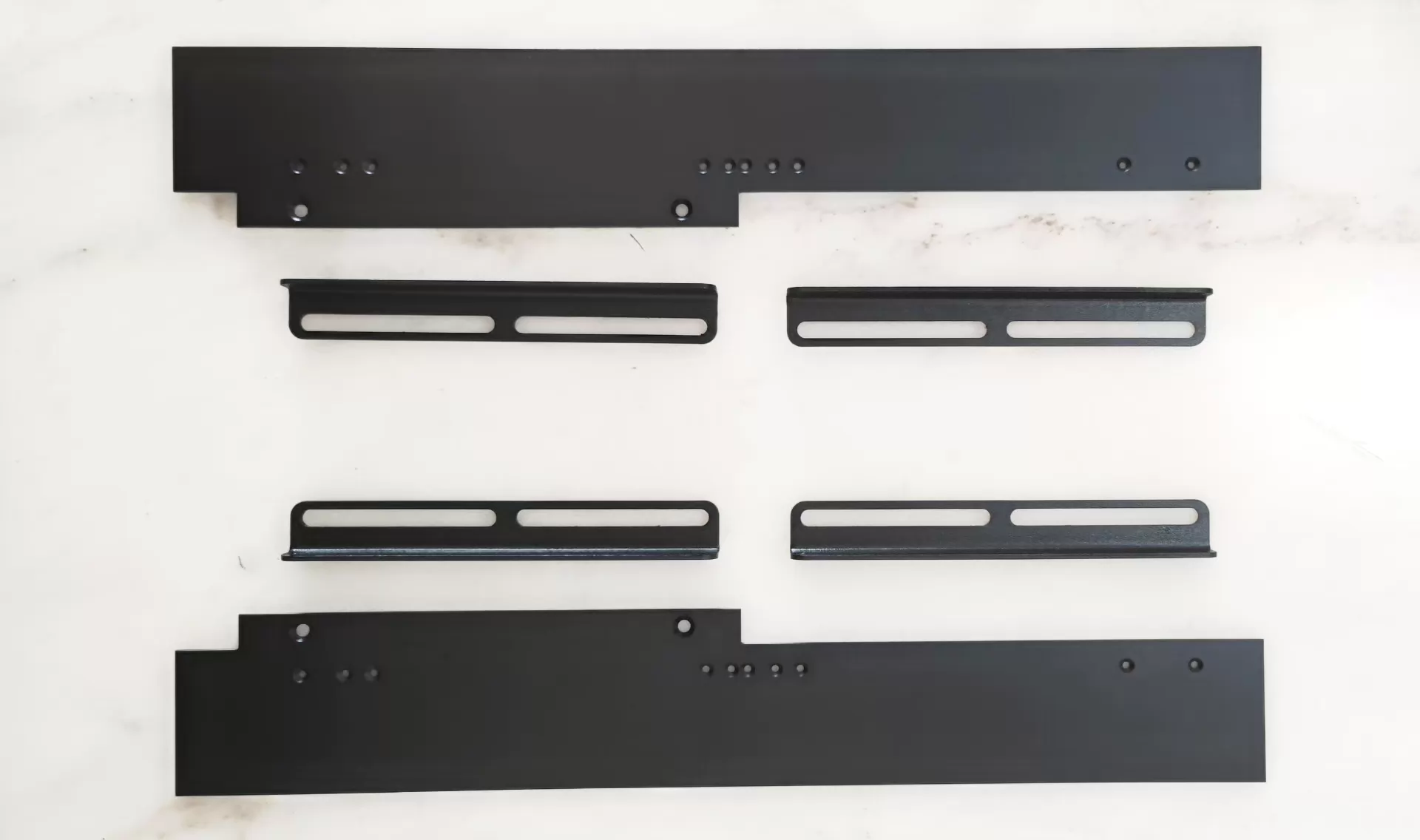

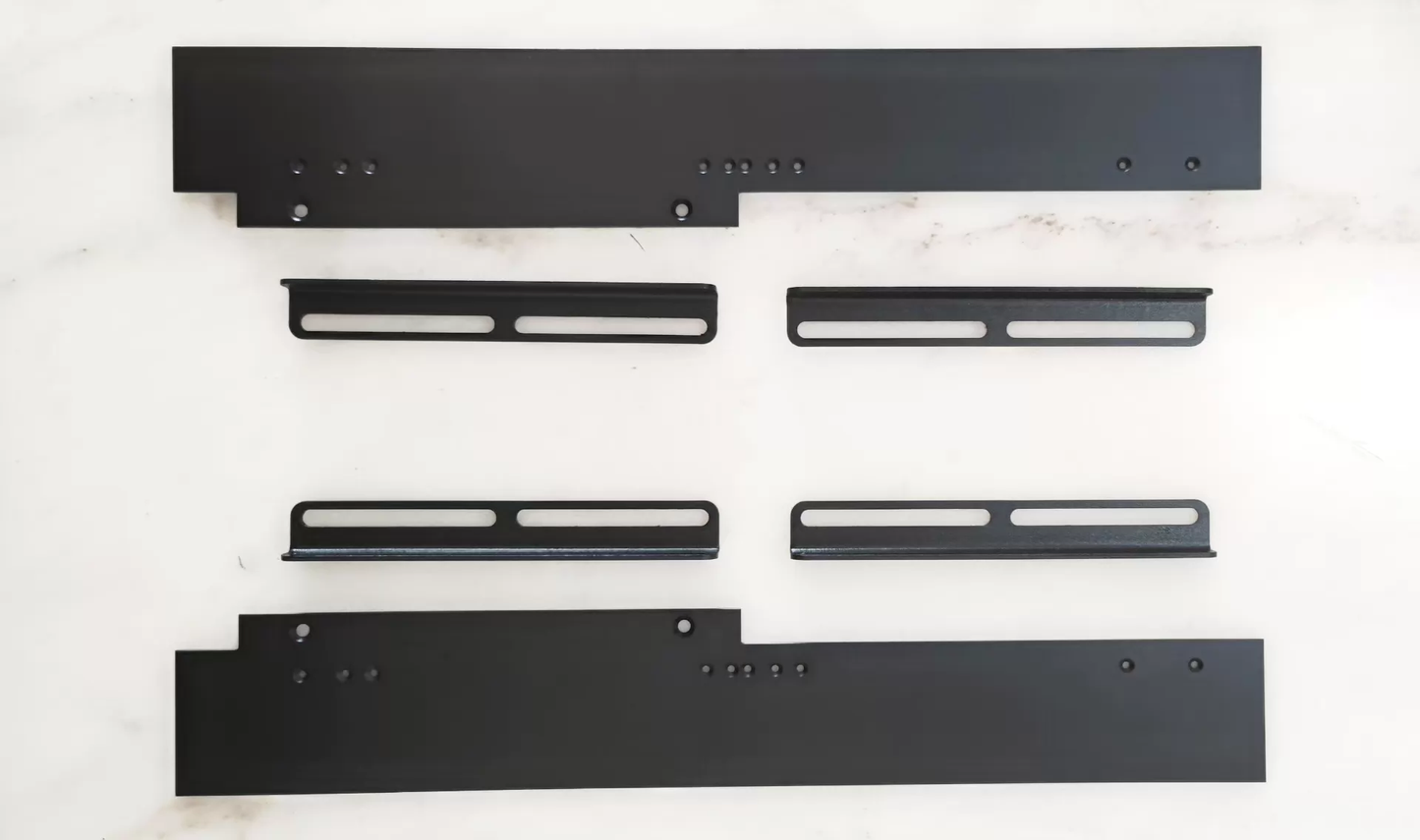

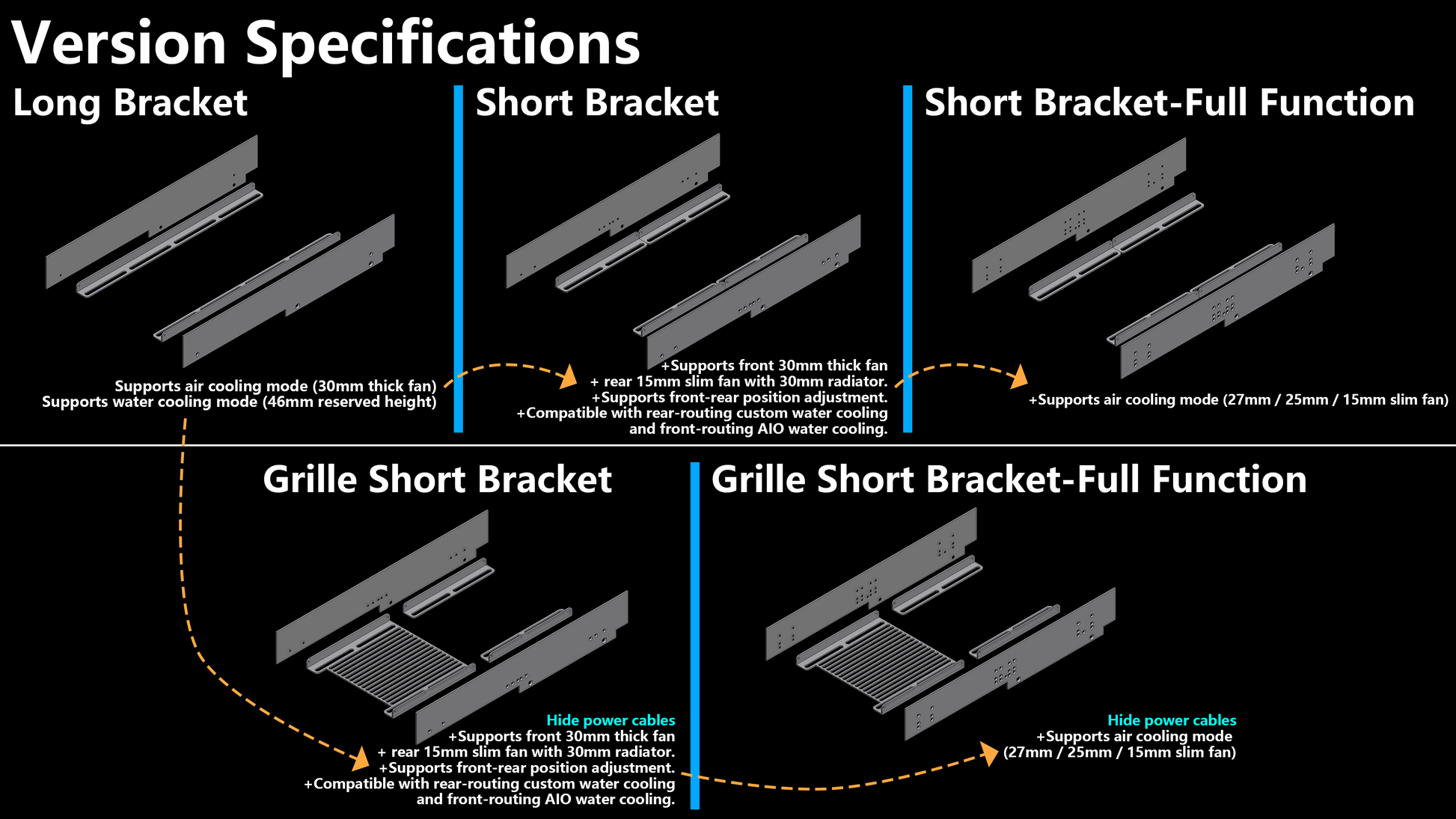

Package Contents FormD T1 Fan Bracket Baffle - Long Bracket: 4 components in total FormD T1 Fan Bracket Baffle - Short Bracket: 6 components in total FormD T1 Fan Bracket Baffle - Short Bracket (Full-Featured): 6 components in total
screws included in package. YFS M2-4mm countersunk screws ×4. YFS M2-4mm countersunk screws ×8.
