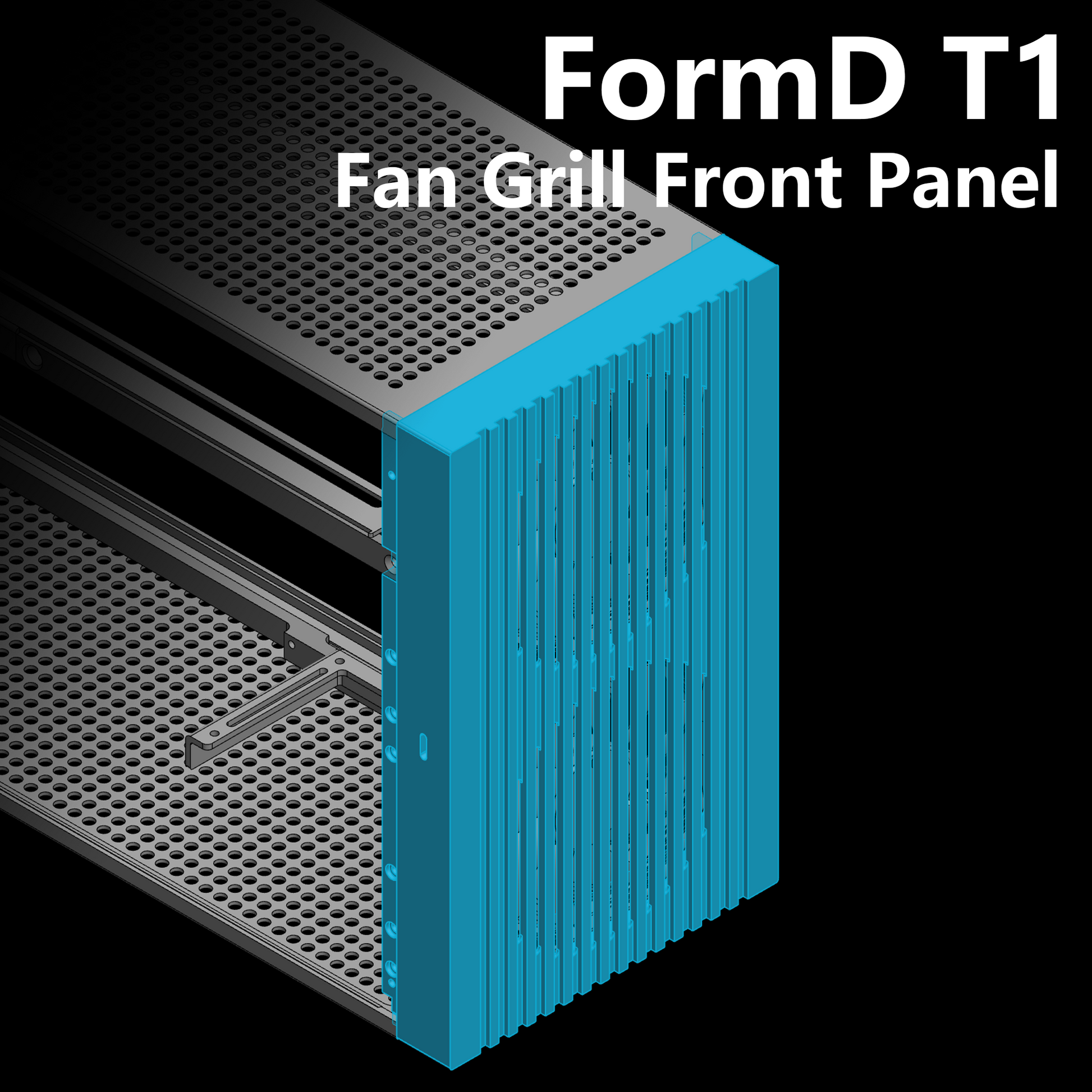

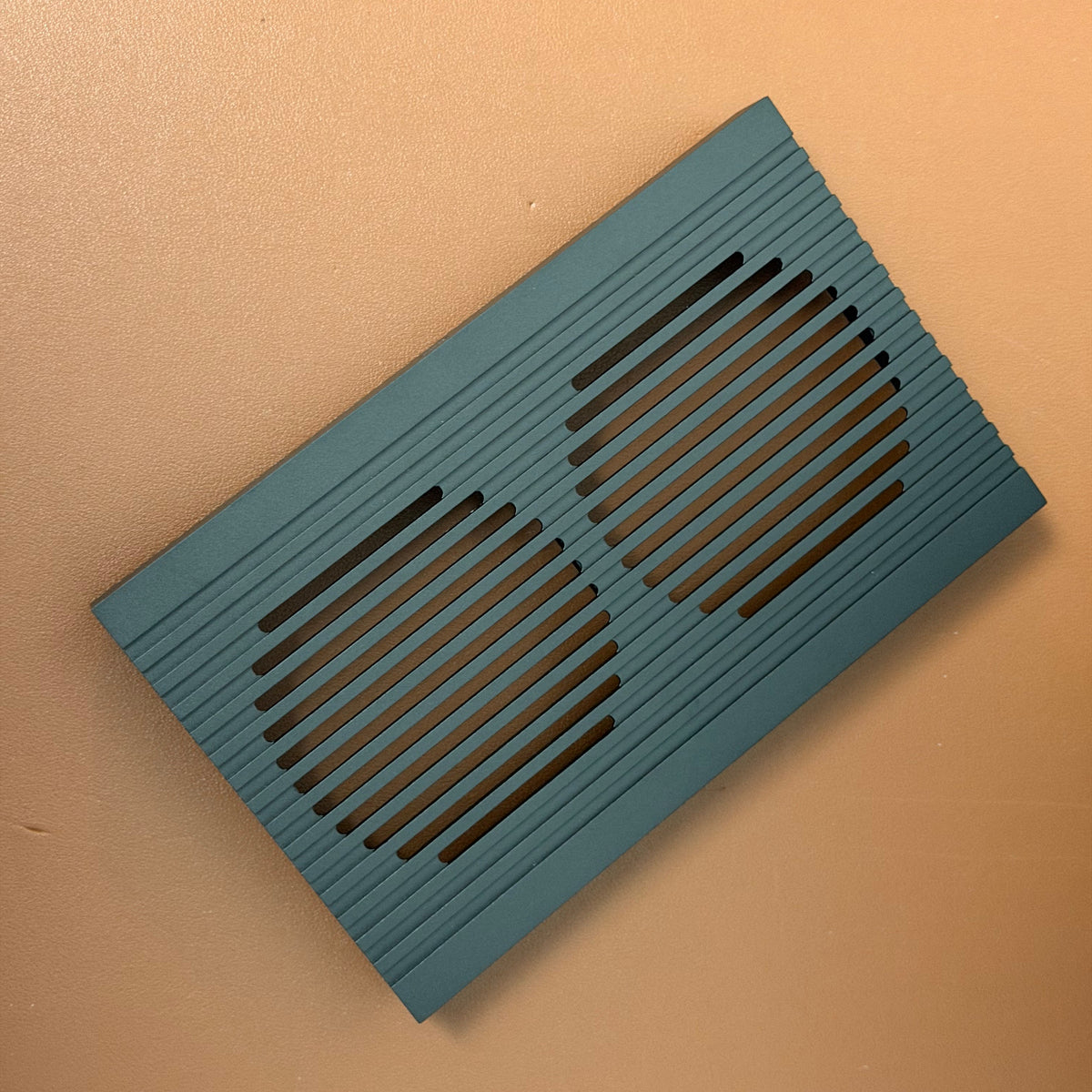

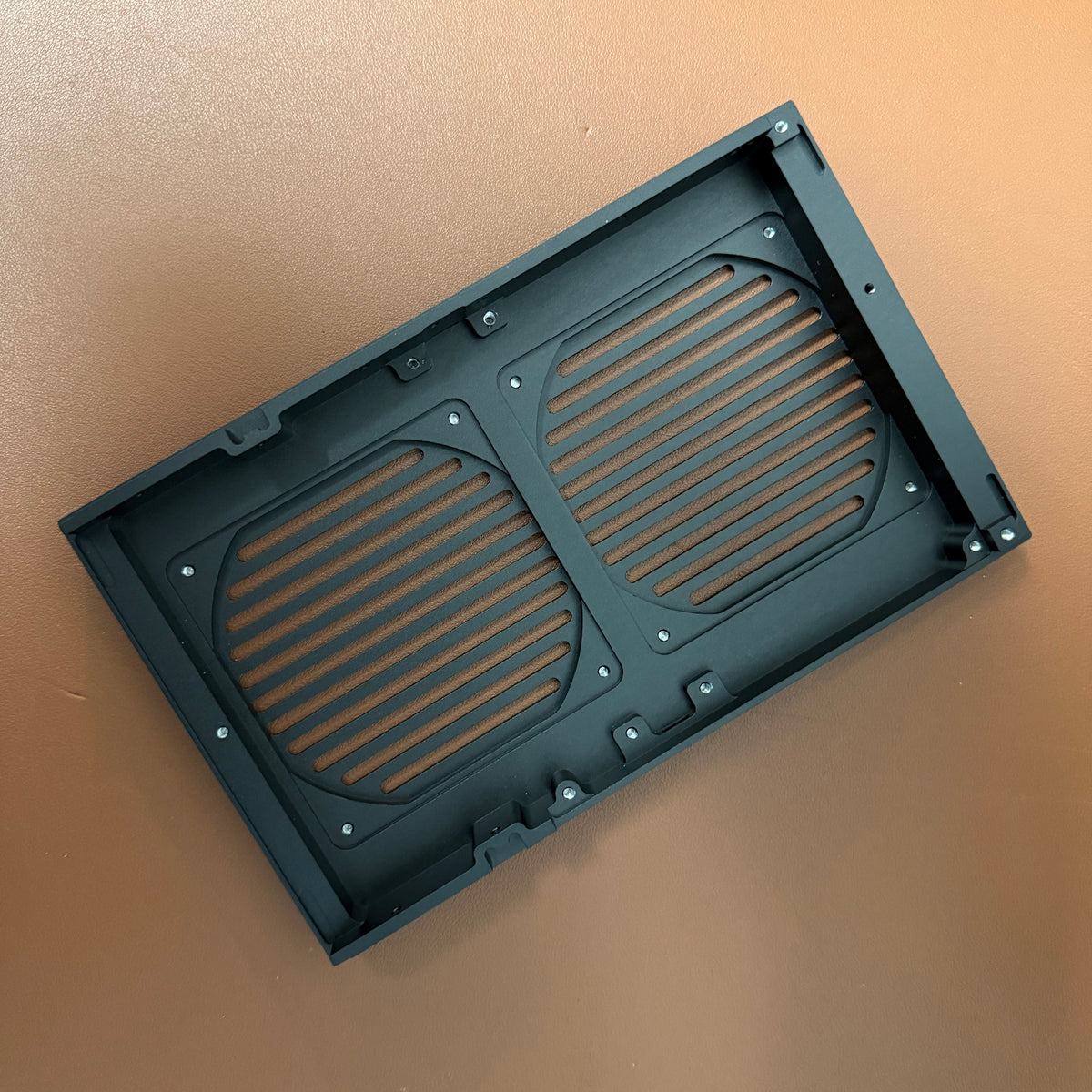

FormD T1 Fan Grill Front Panel

Material: 6061 Aluminum Alloy, CNC Machined, Matte Black Anodized

FormD T1 fan grille front panel, compatible with two 9215 fans. Front panel protrusion thickness increased from 8mm to 22mm, and maximum supported GPU length reduced from 325mm to 320mm. All other functions are consistent with the original panel.

Key Modifications:

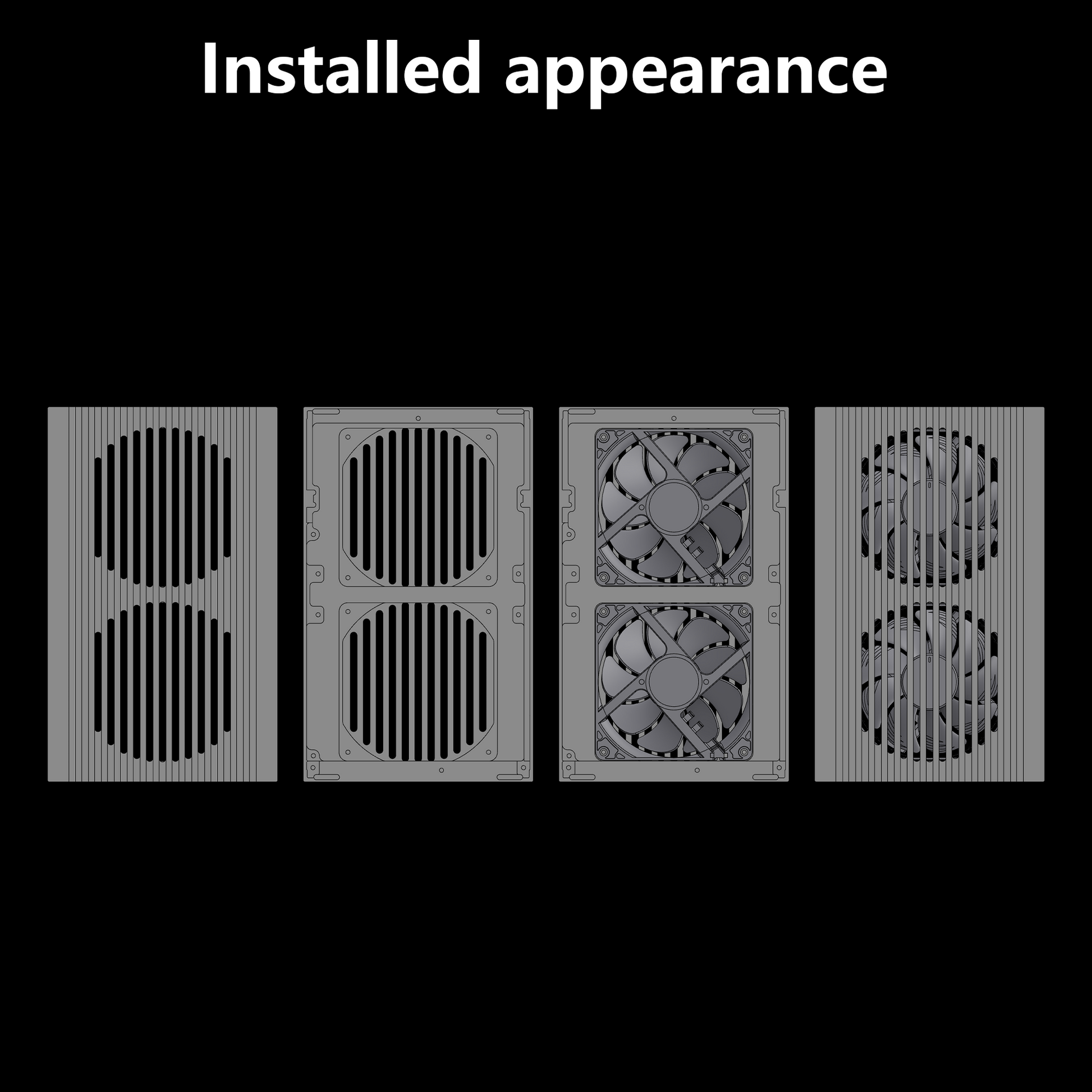

01 Supports two 9215 fans. The 4mm elevation is integral to the panel to reduce wind cutting noise, and integrated low edge limits aid alignment and prevent exhaust backflow.

 02 Front panel protrusion thickness increased from 8mm to 22mm.

03 Maximum supported GPU length reduced from 325mm to 320mm.

04 Recess grooves on side strips are machined with avoidance cutouts for production compatibility; no radii are applied to maintain interchangeability with Version 2.1 and 2.5.

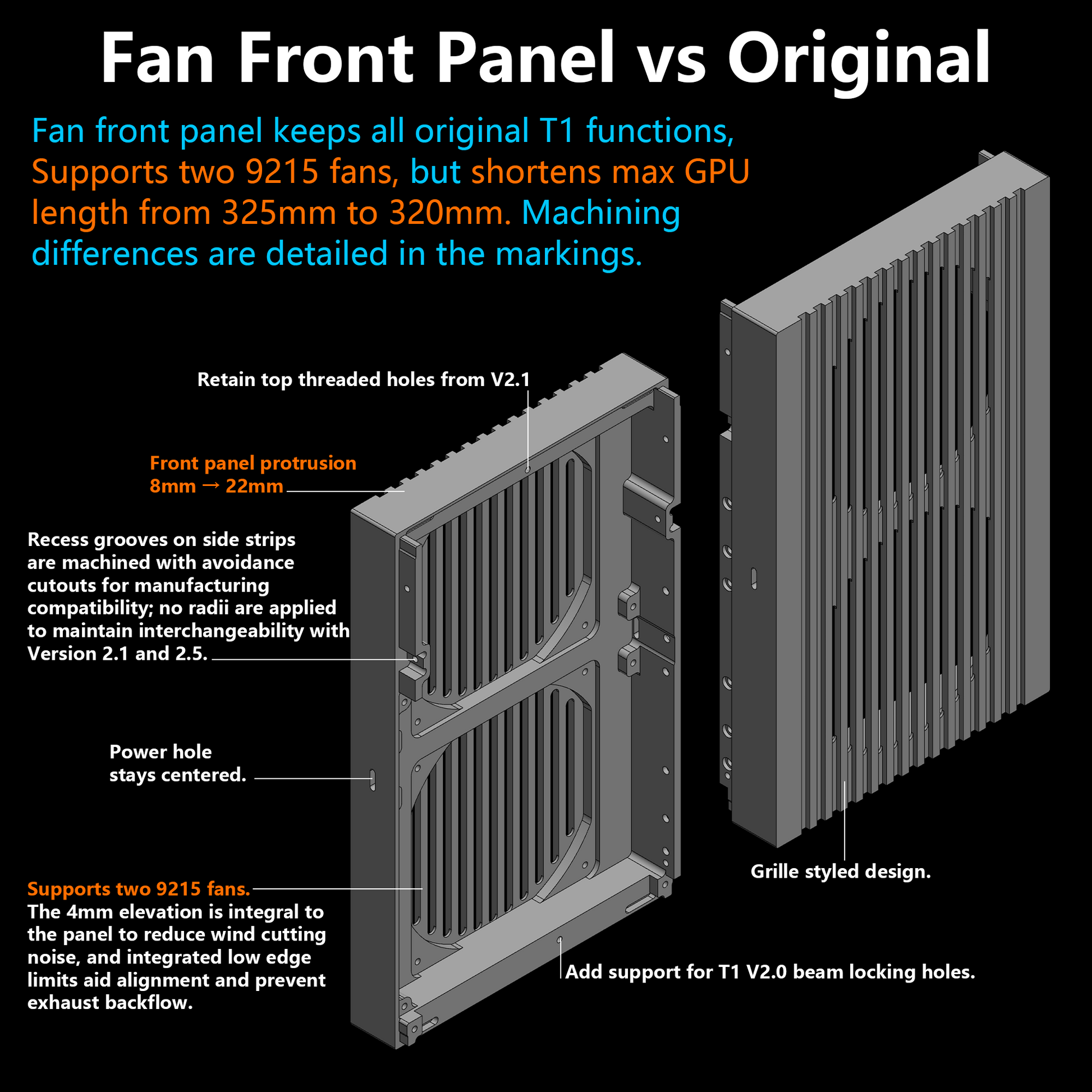

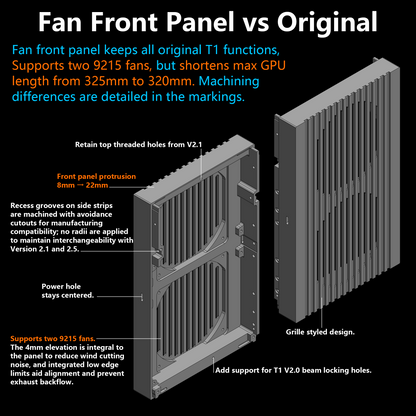

05 The power button hole remains centered. 06 Adopts grille decoration. See diagram for full detailed changes.

See diagram for full detailed changes.

***All CNC machined parts undergo anodizing treatment, which may result in slight color differences compared to the chassis. Please place your order carefully if you are sensitive to color mismatches.
