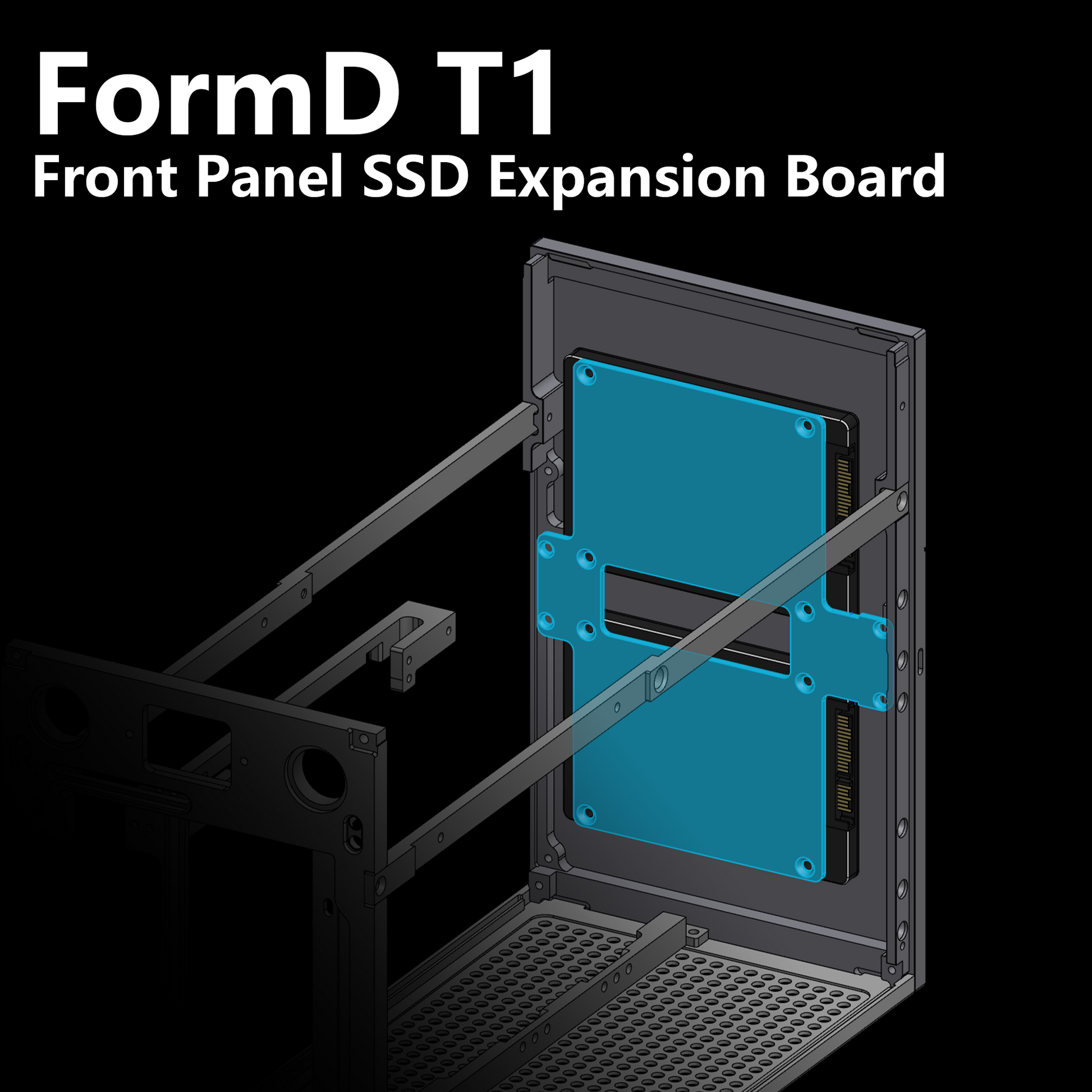

FormD T1 Front Panel SSD Expansion Bracket

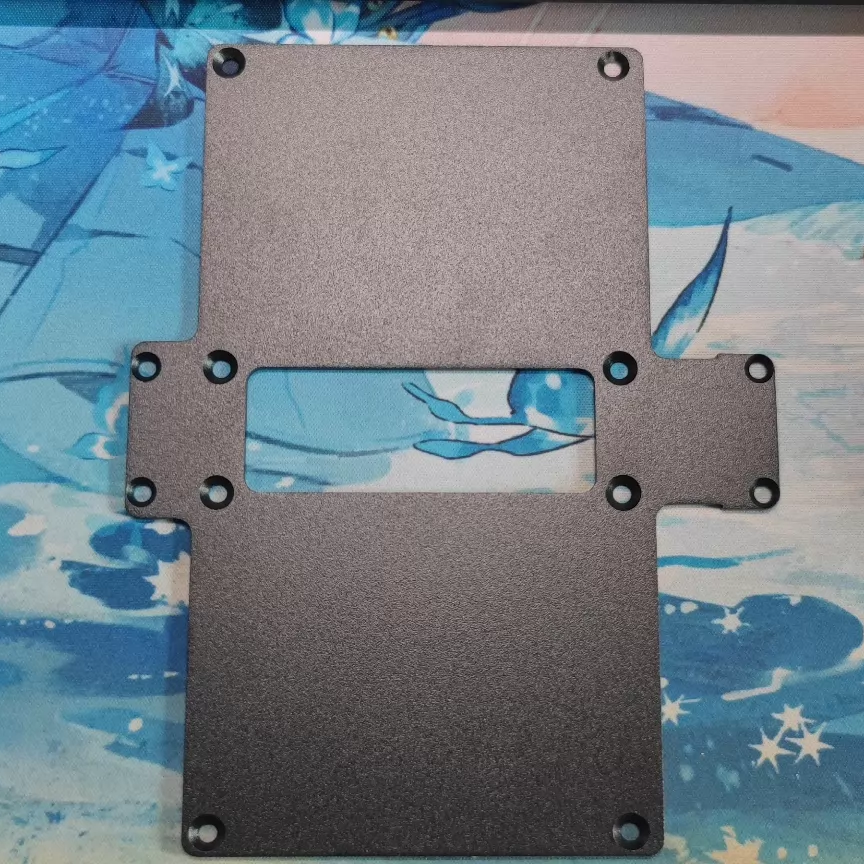

Material: 304 stainless steel sheet metal, matte black powder coated
Thickness: 2mm. Fits two 2.5-inch drives for FormD T1 2.x front panel.

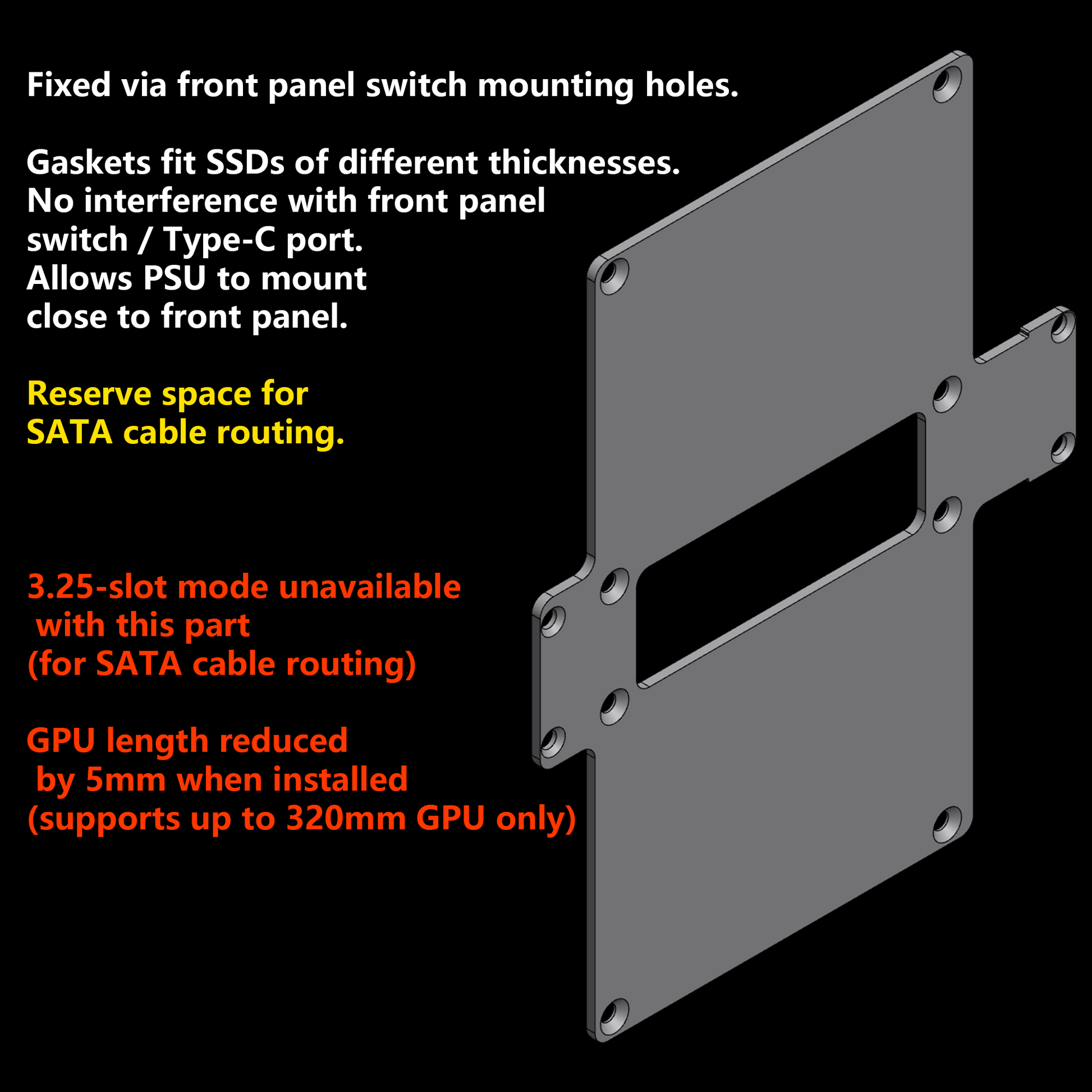

Mounts via front panel switch screw holes. Gaskets adapt to different SSD thicknesses. No interference with front panel switch, Type‑C port or close-fitting PSU installation.

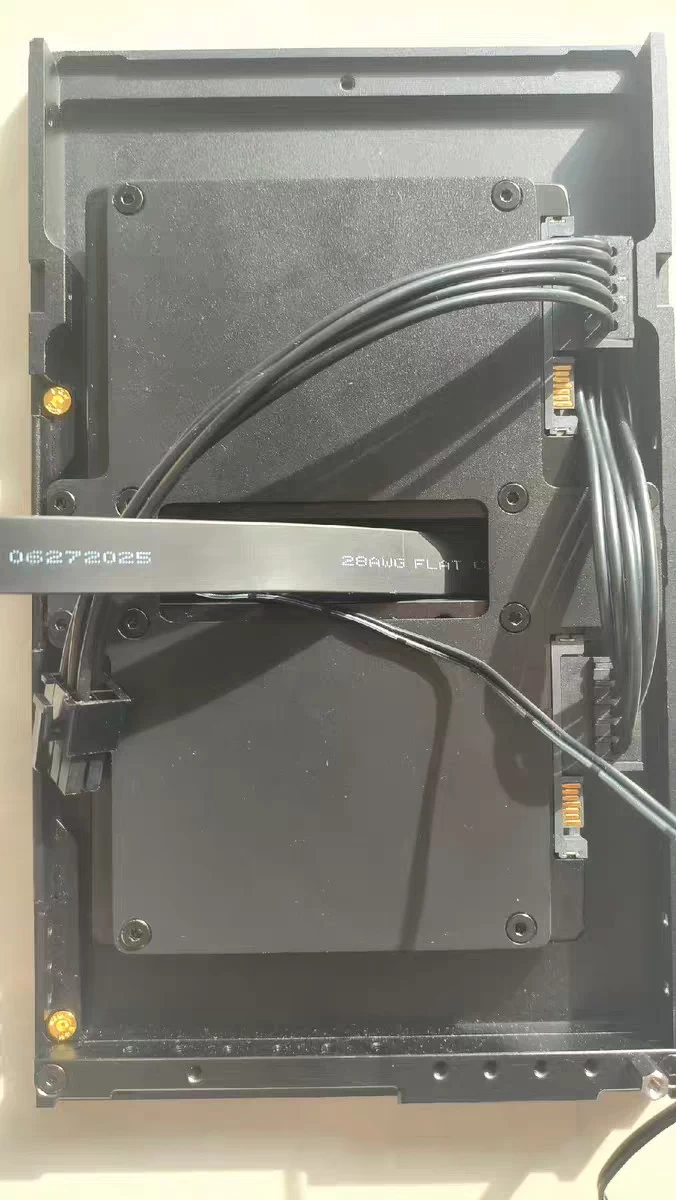

Standard install: SSD ports facing motherboard side
Alternative install: SATA ports facing GPU side
Please reserve space for SATA cable routing.
Notes:
Requires 90° SATA power & data cables.
3.25-slot mode unavailable (for SATA cable routing clearance).
GPU mounting length reduced by 5mm; supports up to 320mm GPU only.
Package Contents
1 × FormD T1 Front Panel SSD Expansion Bracket
8 × Black M3-4 carbon steel countersunk Phillips screws
4 × Black M3-6 carbon steel countersunk Phillips screws
10 × M3 1mm-thick gaskets
