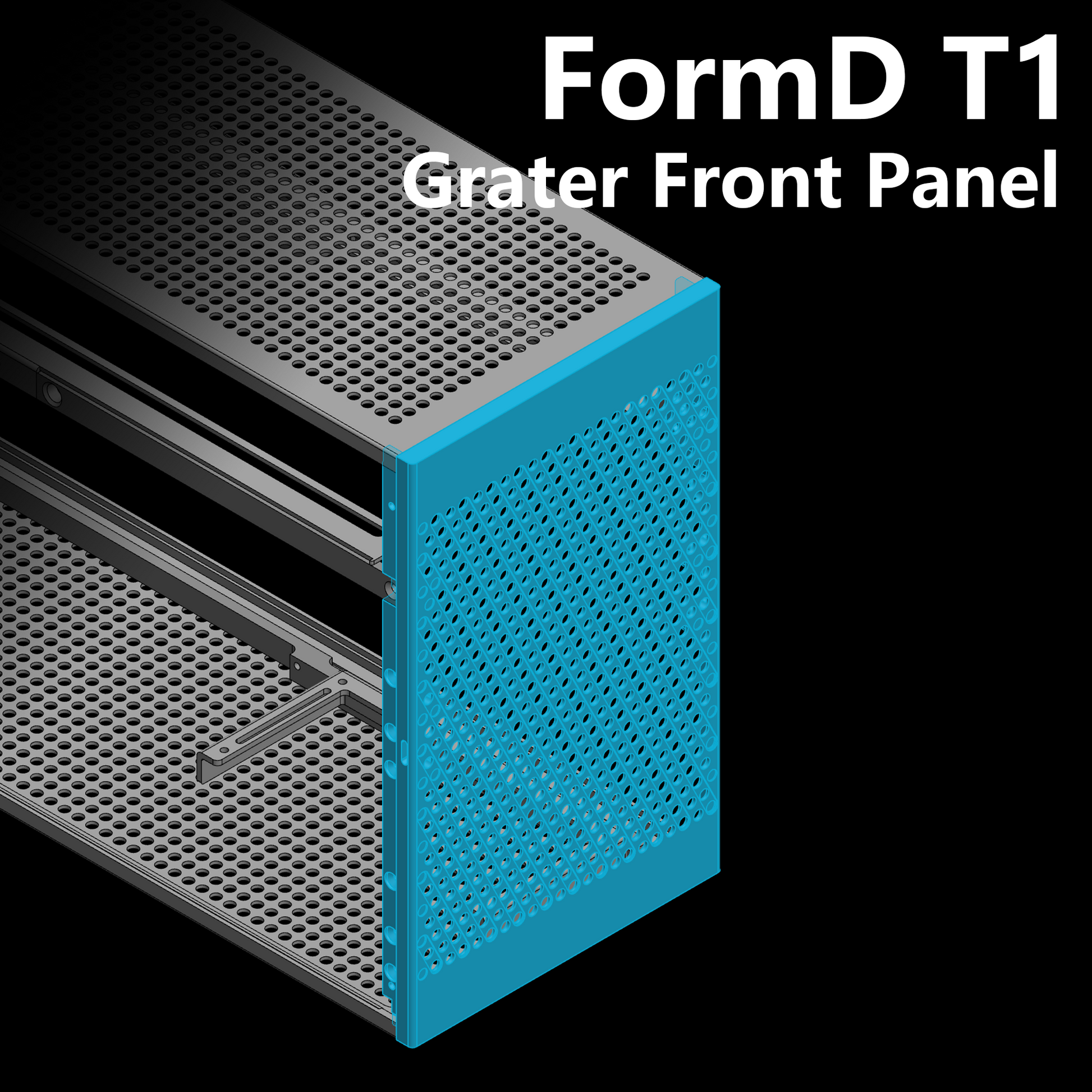

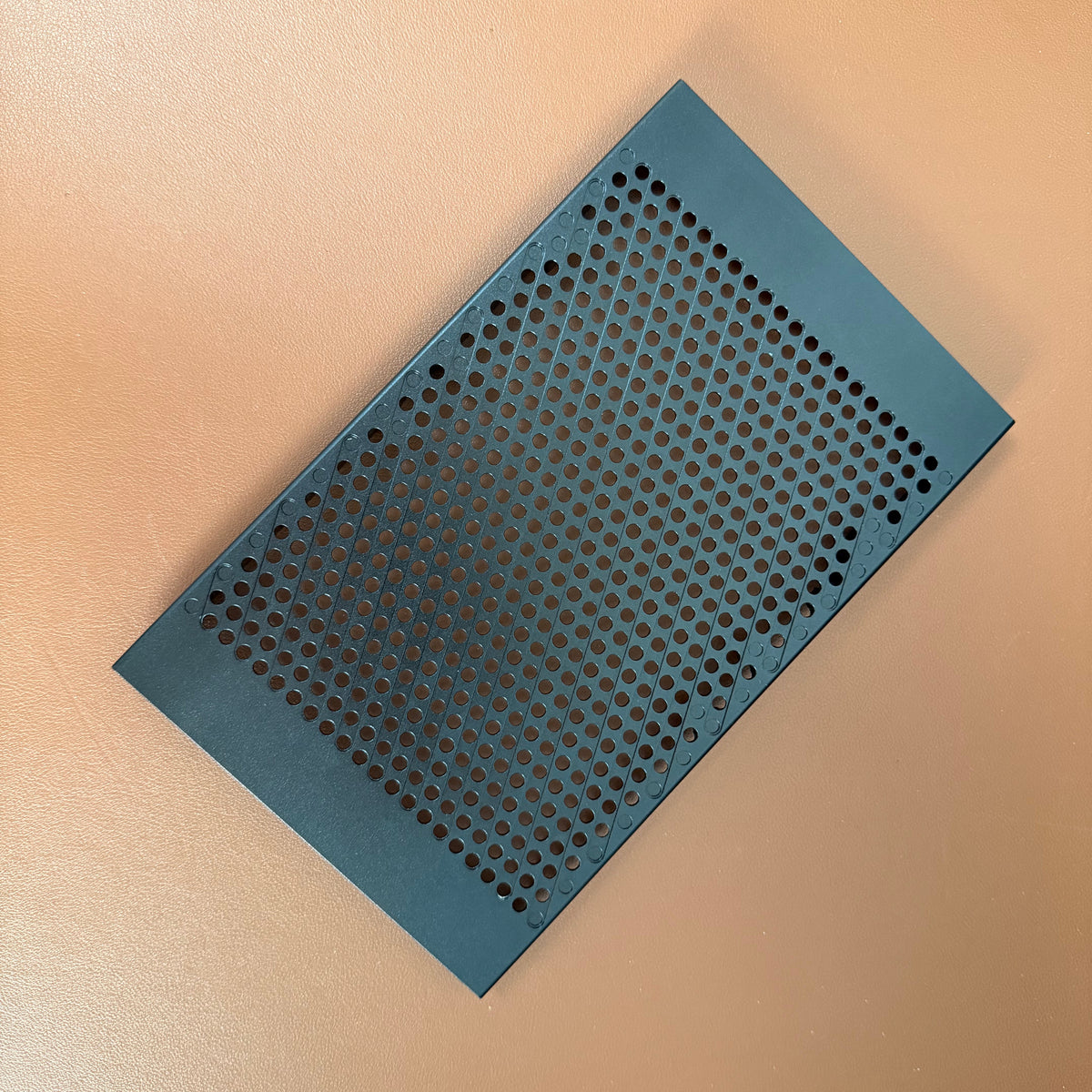

FormD T1 Grater Front Panel

【FormD T1 Grater Front Panel】

Material: CNC machined 6061 aluminum, matte black anodized finish Compatible with FormD T1 V2.1 and V2.5. It fully retains all original front panel functions and GPU compatibility of the stock FormD T1. See diagrams for details on machining and compatibility adjustments.

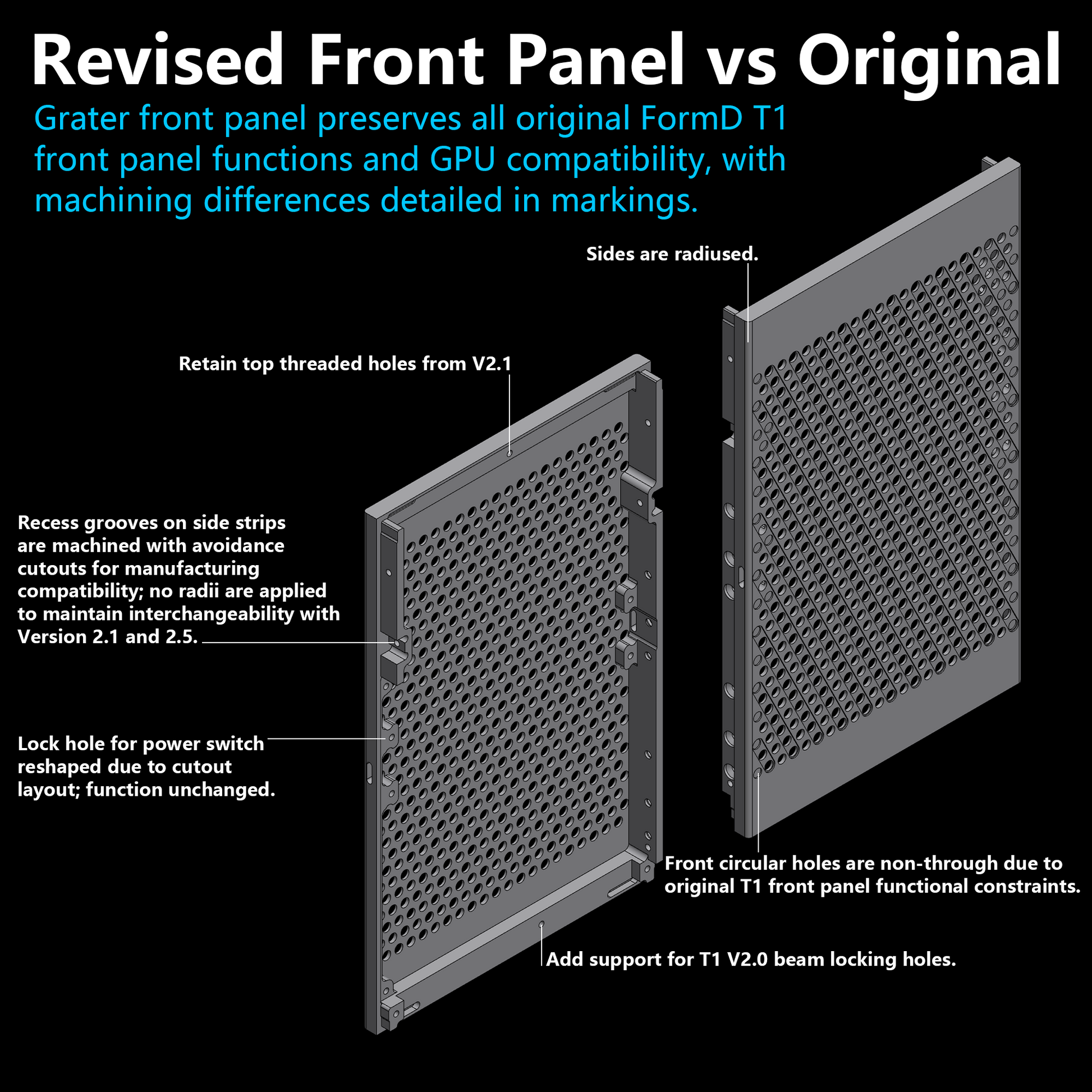

Revised Front Panel vs Original
Grater front panel preserves all original FormD T1 front panel functions and GPU compatibility, with machining differences detailed in markings.
Recess grooves on side strips are machined with avoidance cutouts for manufacturing compatibility; no radii are applied to maintain interchangeability with Version 2.1 and 2.5.
Front circular holes are non-through due to original T1 front panel functional constraints.
Add support for T1 V2.0 beam locking holes.
Sides are radiused.
Lock hole for power switch reshaped due to cutout layout; function unchanged.
Retain top threaded holes from V2.1
