FormD T1 Ver 2.1 Airflow Valley Kit

This kit moves the power supply to the top compartment and vacates the original PSU bay. The graphics card receives full, unobstructed airflow without heating up the power supply. Matched with a perforated front panel, a 120mm fan can be mounted on the front panel — the fan thickness is determined by your GPU length. You may also install a 120mm fan in the original PSU position with the dedicated fan bracket to extract hot air blown off the graphics card.

⚠️ Important Notice: If a front panel fan is fitted with this kit, it may collide with the front mounting brackets of certain 300mm-long graphics cards. This kit does not support reverse mounting for RTX 50 Series Founders Edition GPUs.

It is compatible with SFX and SFX-L power supplies. Custom cables are required when using an SFX-L PSU. The front panel accepts 120mm fans, while the top compartment supports a maximum 12030 fan. All original mounting slots of the T1 chassis remain usable. Every component of this kit is CNC machined from aluminum alloy.

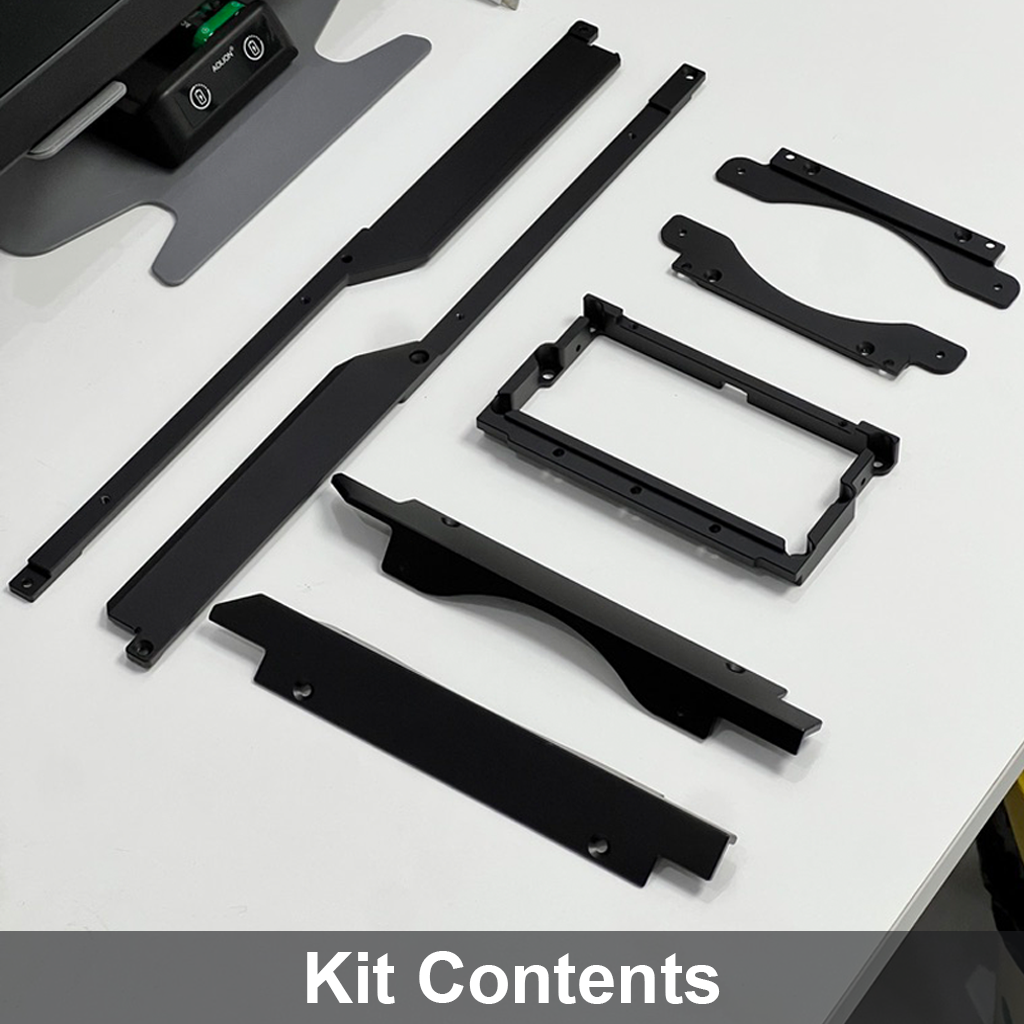

1 × Airflow Valley PSU Bracket 2 × Airflow Valley Side Crossbeams 2 × Airflow Valley Fan Brackets 2 × Airflow Valley Front Fan Brackets

All parts are CNC machined. Minor imperfections that do not impair functionality or drastically ruin the appearance will not be remanufactured. Production lead time is approximately 15 days.

2 × M3 countersunk head screws, 12mm length 2 × M3 flat head screws (any length) 2 × M3 countersunk head screws, 5mm length 4 × M3 screws, 18mm length
